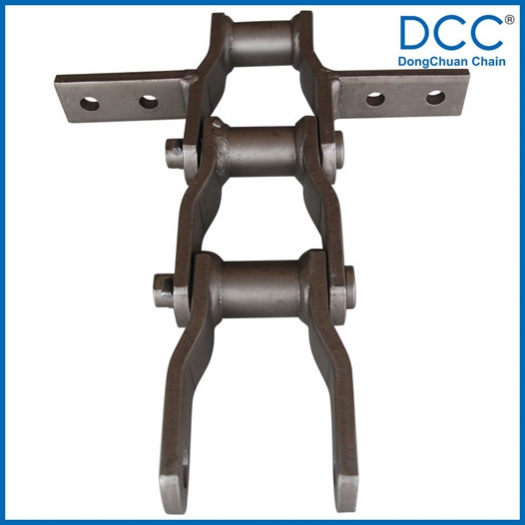

糧機刮板鏈（焊接鏈）

http://www.cs-yixing.com/uploadfiles/211.149.195.244/webid148/source/201507/20310.jpg

糧機刮板鏈（焊接鏈）
東傳全國咨詢熱線：
0519-88710908

詳細描述：

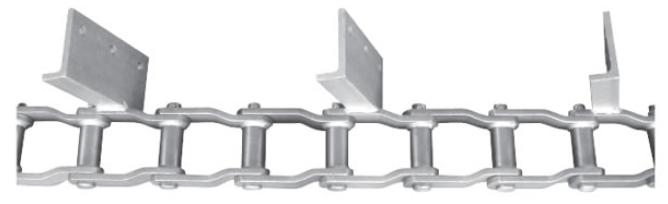

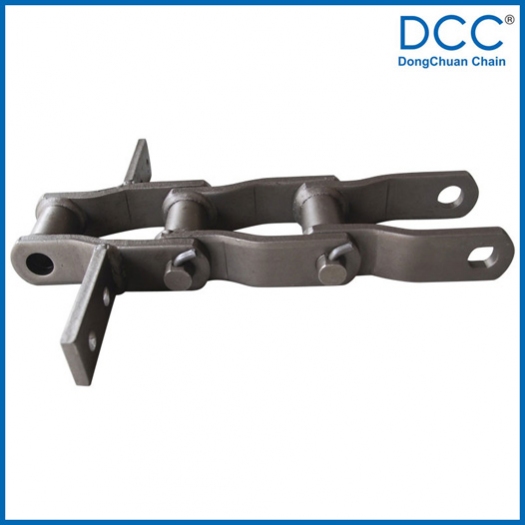

糧機刮板鏈（焊接鏈）

焊接彎板鏈在糧食機械行業也得到廣泛的應用,就是糧機刮板鏈，又叫做糧機焊接鏈。焊接鏈主要適用于有強烈沖擊、物料磨損以及含有大量粉塵的較差工作環境，并在低速工況下承載。

該種鏈條是由相同的彎板鏈節鉸接連成整鏈，因此它不需要過渡鏈節，一掛整鏈的鏈節數可以是偶數，也可以是奇數。鏈條的套筒和鏈板的聯接是采用焊接的工藝，結構簡單，而卻使得鏈條更具耐用性。

為了提高鏈條的品質和使用周期，我們采用了全自動焊接機器人對套筒和鏈板進行焊接，保證了焊接工藝的統一性和穩定性，并按世界前列鏈條廠的焊接標準檢驗焊后的鏈節，同時，按照5％的抽檢比例對焊后的鏈節進行破壞性的試驗，確保每個鏈節焊后的質量得到保證。針對鏈條的銷軸，我們采用月牙形的高頻處理，使銷軸在提高耐磨性的前提下強度更高。

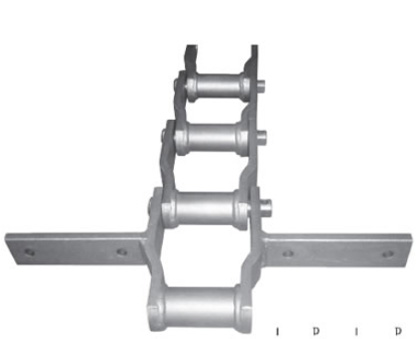

糧機刮板鏈（焊接鏈）

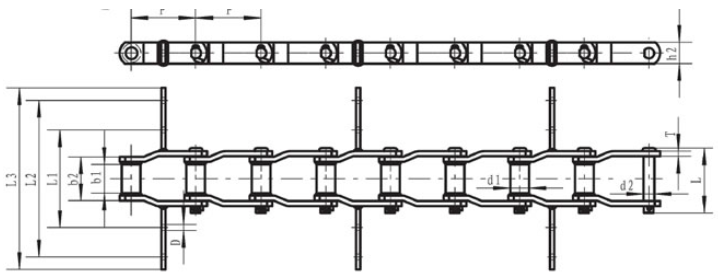

Technical Specifications

Chain No.	Pitch P (mm)	Outer diameter of bushing d1 (mm)	Diameter of pin d2 (max) (mm)	Height of sidebar h2 (max) (mm)	Inner width between small ends b1 (mm)	Outer width between small ends b2 (mm)	Thickness of sidebar T (mm)	Dimension of scraper				Tensile strength Q (min) (KN)
Chain No.	Pitch P (mm)	Outer diameter of bushing d1 (mm)	Diameter of pin d2 (max) (mm)	Height of sidebar h2 (max) (mm)	Inner width between small ends b1 (mm)	Outer width between small ends b2 (mm)	Thickness of sidebar T (mm)	L1 (mm)	L2 (mm)	L3 (mm)	D (mm)	Tensile strength Q (min) (KN)
DC200-1	78.1	26.97	14.35	31.8	38.1	57.4	6	110	150	170	10	132
DC250-1	78.1	26.97	14.35	31.8	38.1	57.4	6	130	180	220	10	132
WH82	78.1	25.4	14.29	32	31.8	57	6.4	155	235	265	14	100.1
DC400.01	78.1	25.4	14.29	32	31.8	57	6.4	160	320	350	14	100.1
DC315.01	101.6	36.5	19.05	38.1	41.28	69.9	9.5	165	235	265	14	300
DC320-1	101.6	31.75	19.05	38.1	41.28	66.9	8	150	190	270	12	300
DC40W.01	101.6	36.5	19.05	38.1	41.28	69.9	9.5	170	280	310	14	300
DC400-1	101.6	31.75	19.05	38.1	41.28	69.9	9.5	170	290	330	12	300
DC500-1	153.67	44.45	25.4	50.8	59	91.2	10	230	370	430	14	356
DC500-1-A	153.67	44.45	25.4	50.8	66	98	10	230	370	430	14	356
DC500×254-1	153.67	44.45	25.4	50.8	59	91.2	10	224	374	434	14	356
WH132-498	153.67	44.45	25.05	50.8	76.2	111.8	12.7	201.4	441.4	498	13	378.1
DC630-1	153.67	44.45	25.4	50.8	66	98	10	230	500	560	14	356
DC660×254-1	153.67	44.45	25.4	50.8	66	102	12	224	534	594	14	511
DC630×254-1	153.67	44.45	25.4	50.8	66	102	12	224	504	564	14	511
DC800-1	153.67	44.45	25.4	50.8	68	104	12	230	450/670	730	14	511
DC800×356-1	153.67	44.45	28.75	60	73	109	12	226	450/674	734	14	543
DC1016-1	153.67	44.45	28.75	60	73	109	12	230	560/890	950	14	543

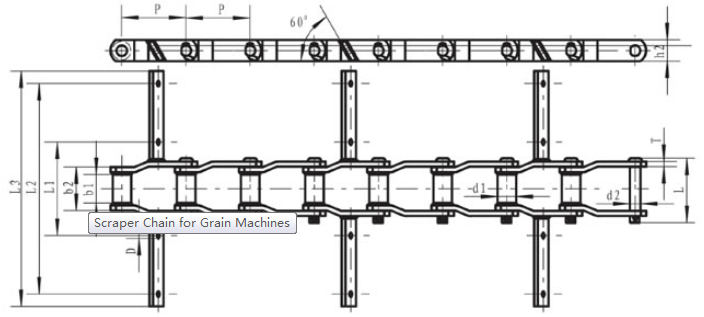

Chain No.	Pitch P (mm)	Outer diameter of bushing d1 (mm)	Diameter of pin d2 (max) (mm)	Height of sidebar h2 (max) (mm)	Inner width between small ends b1 (mm)	Outer width between small ends b2 (mm)	Thickness of sidebar T (mm)	Dimension of scraper				Tensile strength Q (min) (KN)
Chain No.	Pitch P (mm)	Outer diameter of bushing d1 (mm)	Diameter of pin d2 (max) (mm)	Height of sidebar h2 (max) (mm)	Inner width between small ends b1 (mm)	Outer width between small ends b2 (mm)	Thickness of sidebar T (mm)	L1 (mm)	L2 (mm)	L3 (mm)	D (mm)	Tensile strength Q (min) (KN)
DC400×203-1	101.6	31.75	19.05	38.1	41.28	69.9	9.5	154	294	334	12	300
WH130×400	153.67	44.45	25.2	50.8	76.2	111.8	12.7	230	350	400	14	378.1
DC500×254	153.67	44.45	25.4	50.8	59	91.2	10	224	374	434	14	356
DC630×254	153.67	44.45	25.4	50.8	66	102	12	224	504	564	14	511
DC660×254	153.67	44.45	25.4	50.8	66	102	12	224	534	594	13	511
DC762×254	153.67	44.45	28.75	50.8	73	109	12	226	636	696	14	543
DC800×254	153.67	44.45	28.75	60	73	109	12	226	450/674	734	14	543
DC1016-1	153.67	44.45	28.75	60	73	109	12	230	560/890	950	14	543

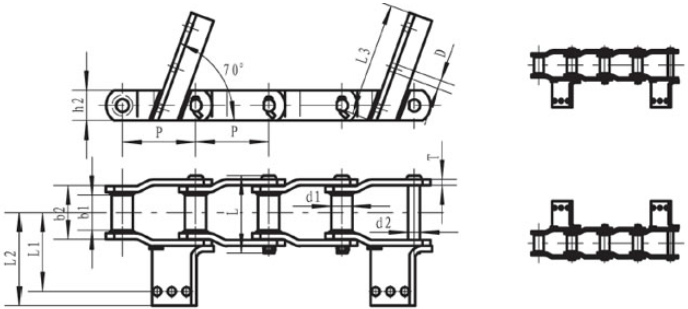

Chain No.	Pitch P (mm)	Outer diameter of bushing d1 (mm)	Diameter of pin d2 (max) (mm)	Height of sidebar h2 (max) (mm)	Inner width between small ends b1 (mm)	Outer width between small ends b2 (mm)	Thickness of sidebar T (mm)	Dimension of scraper				Tensile strength Q (min) (KN)
								L1 (mm)	L2 (mm)	L3 (mm)	D (mm)
WH150	153.67	44.45	28.57	63.5	73	111.76	12.7	163.4	193.4	240	18	542
